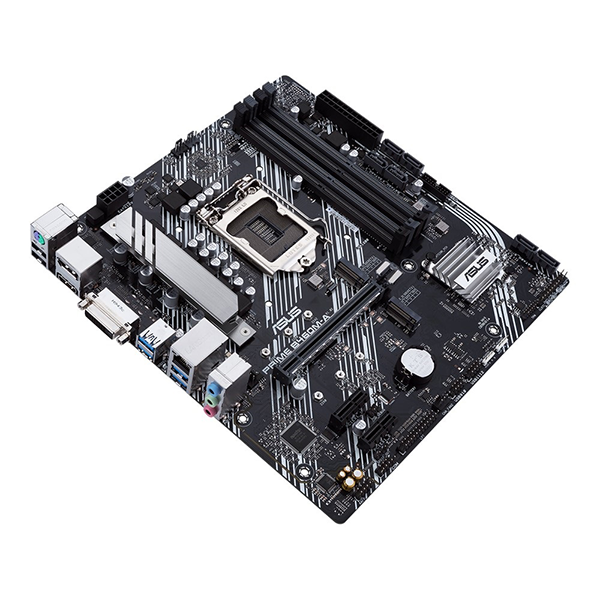

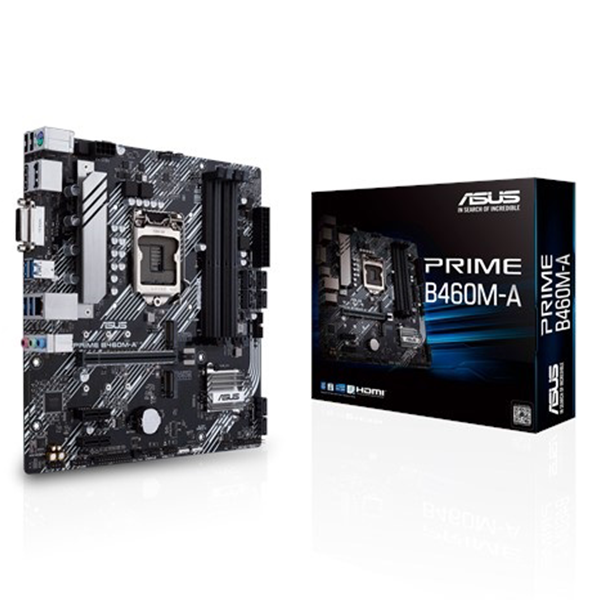

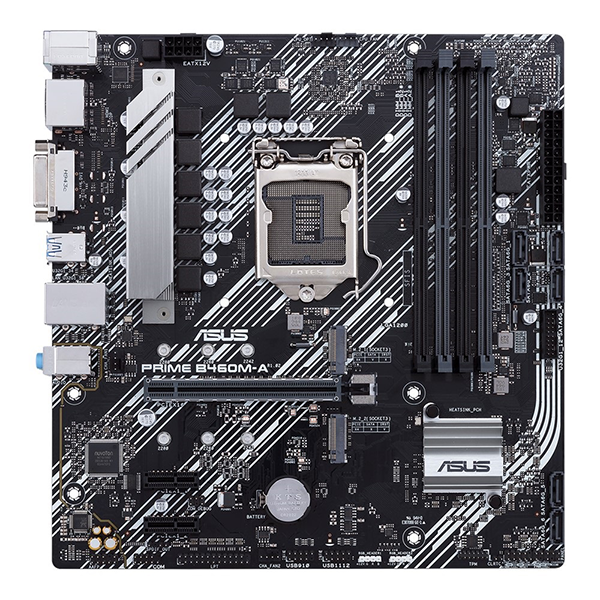

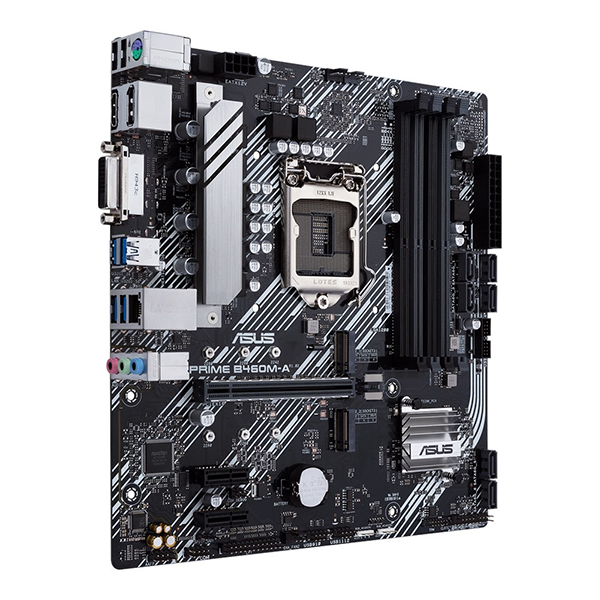

ASUS PRIME B460M-A Placa Madre Micro ATX M.2 LGA1200
Tarjeta Madre mATX Intel® B460 (LGA 1200) con puerto Aura Sync RGB, Dual M.2, DDR4 2933MHz, HDMI, DisplayPort, puertos USB 3.2 Gen 1, lista para memoria Intel® Optane, SATA 6 Gbps
Socket Intel® LGA 1200: Listo para procesadores Intel® Core™ de 10a generación
ASUS OptiMem: Cuidadoso de trazas y vías para preservar la integridad de la señal y mejorar la estabilidad de la memoria.
Fan Xpert 2+: Controles flexibles para el máximo enfriamiento con el menor ruido, además de detección de temperatura de GPU para juegos más frescos.
5X Protection III: Múltiples protecciones de hardware para una protección completa.
Conectividad ultrarrápida: Flexibilidad suprema con soporte nativo M.2 para velocidades de almacenamiento ultrarrápidas.
Aura Sync RGB: Efectos LED sincronizables en una amplia variedad de equipos compatibles, incluidas tiras RGB direccionables.
ASUS PRIME B460M-A Placa Madre Micro ATX M.2 LGA1200
CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B460
Memoria
Intel® B460 Chipset
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráfica
Integrated Graphics Processor- Intel® UHD Graphics support
1 x DisplayPort 1.4
HDMI 1.4b x 1
1 x DVI-D
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Puertos de Expansión
Intel® 10th Gen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode) Intel® B460 Chipset
2 x PCIe 3.0/2.0 x1
Almacenamiento
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Audio
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
– Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Puertos USB
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
AI Charger
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– CrashFree BIOS 3
– ASUS EZ Flash 3
– UEFI BIOS EZ Mode
ASUS Special Features
5X PROTECTION III
– ASUS DIGI+ VRM
– LANGuard
– ASUS Overvoltage Protection
– Safeslot
– ASUS Stainless-Steel Back I/O
Q-Design
– ASUS Q-DIMM
ASUS Sync
– Standard RGB header(s)

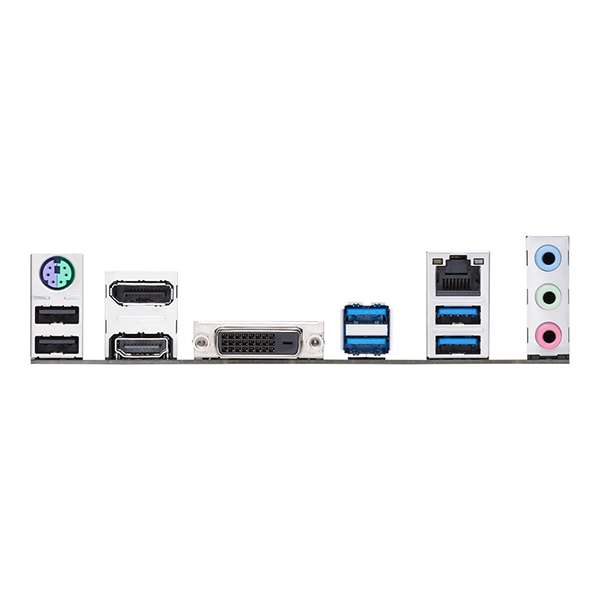

Puertos posteriores I/O
1 x PS/2 keyboard/mouse combo port(s)
DVI-D x 1
1 x DisplayPort
1 x HDMI
LAN (RJ45) port(s) x |
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Internal I/O
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x SPI TPM header
1 x LPT header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
8-pin ATX 12V Power connector(s) x 1
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
COM port header x 1
Accesorios
User’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manejo
WOL by PME, PXE
Sistema operativo
Windows® 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm )
